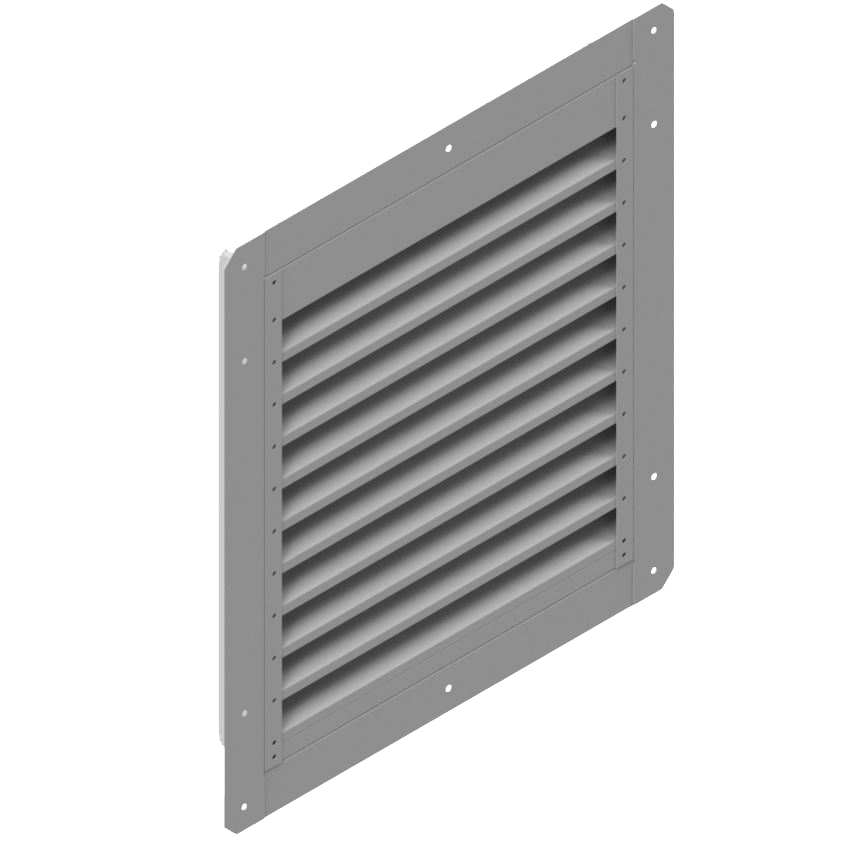

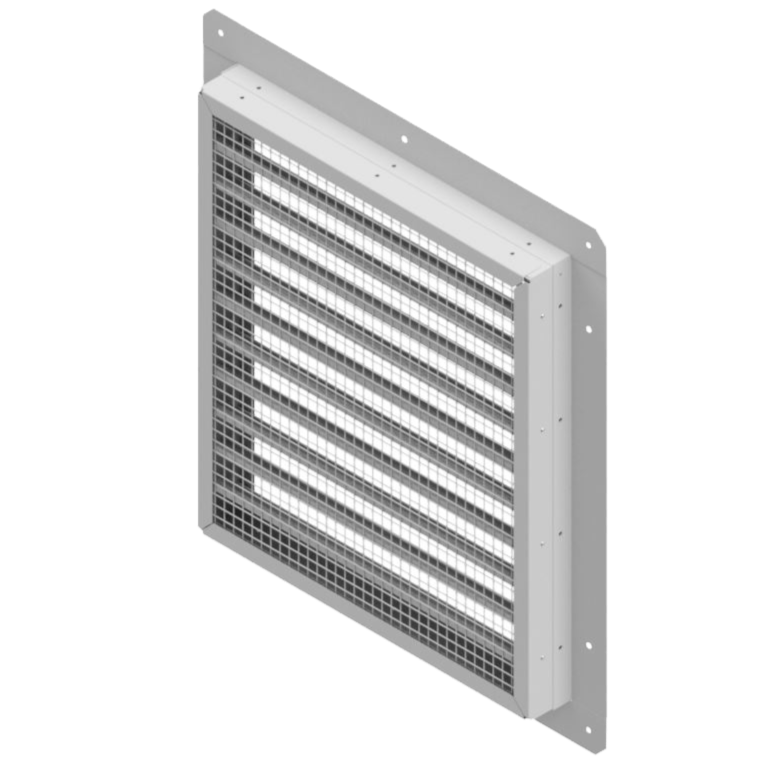

Low Energy Louvre

The Patented Design (Patent GB2580119) has an increased effective free area, when compared to a conventional louvre, reducing resistance and therefore power required to drive the fan. With a lower fan speed running costs are reduced with the added benefit of lowering fan sound levels.

Example – Typical Louvre 1m W x 0.3 H = Resistance of 20Pa @1.5m/s

Eco-Airvent Low Energy Louvre 1m W x 0.3 H = Resistance of 4Pa @1.5m/s

Eco-Airvent Louvres can be manufactured in Steel or Aluminum with optional powder coating in any standard RAL Colour.

Description

  • Patented louvre design providing 66% free area, 4pa at 1.5m/s

  • Unique anti rain ingress blade design.

  • Current industry standard 33%, best of 48% free area, 20pa at 1.5m/s

  • Manufacture any material and colour

Key Features

Download Brochure
